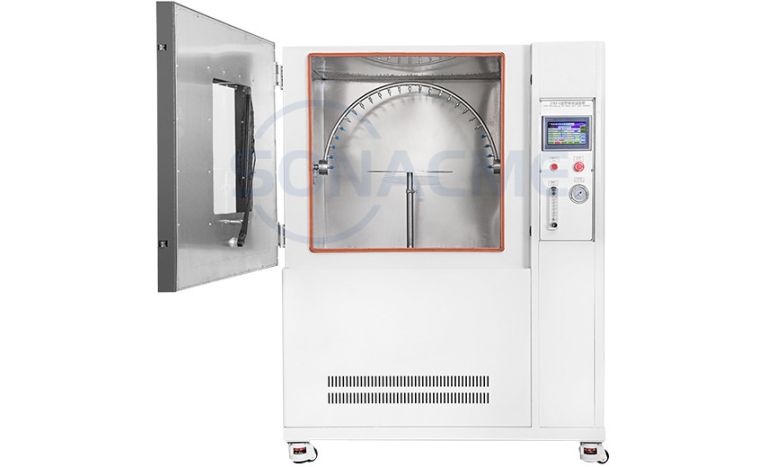

Rain Test Chamber IPX34
SONACME rain test chamber ipx34 is used to test the IPX3 and IPX4 waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone shells, auto parts, etc. Touch screen, new operating system, more remote operation, convenient and fast.
Comply with IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)" test standard.
Application: Rain & Water Ingress Test Chambers
| Model | SR/IPX34/1000 |
| Inner chamber material D×W×H (mm) | 1000*1000*1000 |
| Outer chamber material D×W×H (mm) | 1200*1450*1800 |
| Radius of Water spraying ring | 400mm |
| Swing amplitude | ±45°、±60°、±90°、±180° (theoretical value) |
| Rotating speed | 1r/min can also be used for speed regulation without joints |
| Water pipe diameter | φ18mm |
| Nozzle hole diameter | φ0.4mm |
| Aperture spacing | 50mm |
| Power supply | 2.5(KW |
