A Unit

A Unit 1A Unit Zoom 1
Search icon
A Unit 1A Unit Zoom 1

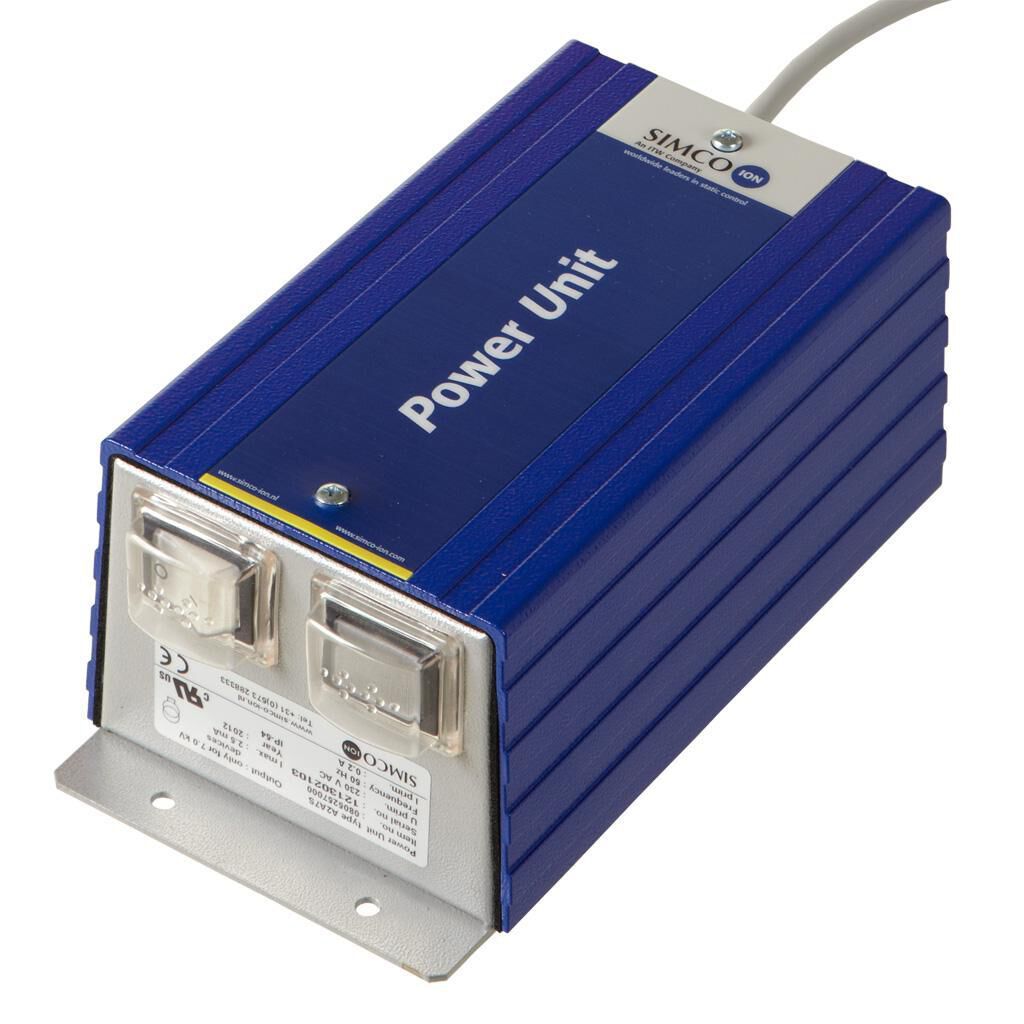

The standard model has a modern styling featuring easy-access control and connections. It is equipped with an on/off switch with an indicator lamp as well as a high-voltage indicator lamp. This lamp will extinguish if the system is  malfunctioning. 4 ionisers can be connected as a maximum.

Features

  • High voltage indication
  • Supplies up to 4 devices
  • Low power consumption
  • UL certified

Technical specifications

  • Housing material: aluminium and steel, powdercoating
  • Weight:2,8 kg
  • Connections|4
  • On/off switch with lamp|yes
  • High voltage indication|Neonlamp
  • Cable|1,8 m
  • Ambient temperature|0 - 50 °C
  • Use circumstances|Industrial
  • Protection classification|IP-54
  • U primairy|110 V or 230 V *
  • Frequency|50 or 60 Hz*
  • Power consumption|50 Watt
  • U secundairy|3,3 - 7 kV AC *
  • I secundairy|2,5 mA max.
  • Option|HR, D
  • Approval|UL
